產品簡介

微機控制和數顯有關參數特制的機架,，強度高，易調整,，便于大漏底拆卸,；封閉式圓墻板避免了墻版花；適用雙棉卷或棉箱喂入,；機外間歇吸,，機內雙濾塵箱連續吸；蓋板倒轉,，增強分梳,，改善棉網質量；設前后固定蓋板及分梳板,，錫林道夫結構

主要特點

●微機控制和工業觸摸屏顯示有關參數,。

●錫林道夫結構優化設計，提高精度,。

●特制的機架,，強度高，易調整,，便于大漏底拆卸

●蓋板花剝?nèi)∮沙⑤伻〈蠑氐丁?/p>

●封閉式圓墻板避免了墻板花,。

●全機采用本廠設計生產的新型齒條。

●適應雙棉卷或棉箱喂入,。

●全新外觀設計，美觀大方,。

●全機多吸點連續吸,。

●四處自停，七處檢測裝置,。

●蓋板倒轉,，增強分梳，改善棉網質量,。

●可以觀察棉網的皮圈導棉裝置.

●設前后固定蓋板及分梳板,。

 詳細說明　　

 錫林、刺輥采用離心摩擦離合器及平皮帶傳動,結構簡單,啟動穩定,。The consteuction of driving cylinder and licker-in by a friction clutch with centrifugal blocks and flat belt is simple and its starting is smooth and stable. 道夫采用變頻電機,，齒形帶傳動，實現無級調速。The doffer is driven by and electronic frequency converter and toothed belt . so as to its speed variation is stepless.. 給棉羅拉采用調頻電機傳動,，實現無級變速,，通過計算機控制與道夫傳動同步。Feed roller is driven by an electronic frequency converter which permits stepless variation of its speed and is controled to be synchronized with doffer by the computer.　　可視棉網的皮圈導棉裝置,，保證了棉條可以高速穩定運轉,，精心設計的大壓輥具有自調勻整檢測羅拉的功能。The web take-off unit allow visual inspection of the web,it ensures the web delivering in high speed and running very stable .The calender roller specially designed is the function of measuring roller for the autoleveller. 全機多吸點連續吸,，壓力連續檢測,。Multi suction point on card ,continuous suction ,pressure continuous measure.　　菱形給棉羅拉，實現彈性握持,，減少纖維損傷,。The rhombus fluted-shaped feed roller holds the feed sliver slastically to decrease the damage to the fibre.

■ 電氣控制　　FA203A型梳棉機電氣控制柜，采用進口PLC和兩臺進口變頻器,，控制道夫和給棉電機的無級調速和比例運轉,。升降速平滑，運行穩定可靠,，剎車性能好,。　　機器的左前方安全罩上裝有進口的顯示屏,，能控制開停各個電機,，能顯示各種動態的工藝數據，并能對各種故障和滿筒等狀態作出報警,。整機的控制中心是進口可編程控制器,，操作簡單，運行可靠,。Electric controlThere are one imported invers in the electronic control cabinet of card FA203A .it contronic doffer's and feed motor's speed to make a stepless variable speed and run it at the rate,with a smooth speed up and down and a good brake performance,it is running steady and reliable. The imported display screen is erected on safety cover in the left front of maching, It can control each motor. It can display all data on dynamic technology and take an alarm for all faults and full-can status. Control center of whole machine is a imported programmable controller,which operates simply and reliably.

■ 選用 清梳聯喂棉箱JF1171型雙箱氣壓式無回花喂棉箱,，實現清花，梳棉連續化生產,。YSD自調勻整系統,，通過檢測喂入棉層厚度和棉條厚度，由計算機控制給棉羅拉轉速,，實現長短片段勻整,。 OptinalChute feed in blowroom & card line:JF1171 double-box air pressure type chute feed is without returning fibres to realize continuously production is blowroom and card line. YSD autolveller detects the thickness of feeding fibrous layers and controls the rotation of the feed roller by the computer and corrects for long and short term irregularities.

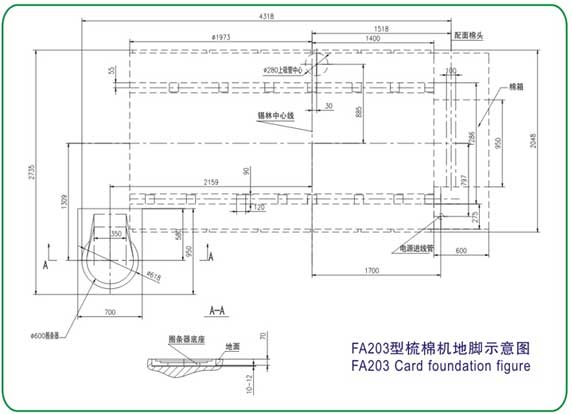

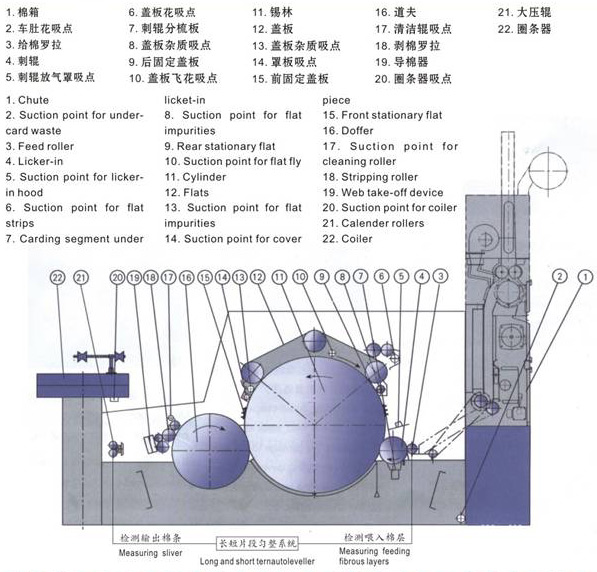

■ 結構示意圖

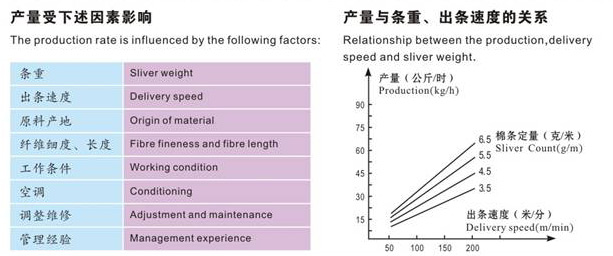

■ 產量與條重、出條速度的關系 技術參數適用范圍本機適用于纖維長度22～76毫米的純棉,、化纖及其混紡,。實際產量（公斤/小時）80（最高出條速度200米/分）棉條定量（克/米）3.5～6.5適用棉卷規格（毫米）最大直徑550，寬度980工作幅寬(毫米)1000總牽伸倍數(毫米)60～300刺輥工作直徑φ250刺輥工作速度756 833 942 1025轉/分（皮帶輪：φ224）771 771 872 942轉/分（皮帶輪：φ242）647 712 805 877轉/分（皮帶輪：φ262）道夫工作直徑(毫米)φ706道夫工作速度(轉/分)32-76錫林工作直徑(毫米)φ1288錫林工作速度(轉/分)紡棉 344 379 429 467紡化纖 300 331 374 407回轉蓋板根數（工作蓋板/蓋板總數）32/86蓋板速度紡棉 145 160 181 198紡化纖 71 78 88 96附加梳理件刺輥分梳板,、后固定蓋板(3),、前固定蓋板(3)適用棉條筒直徑: φ600,，φ900，φ1000高度: 1100,，1200連續吸塵(米3/小時)風量3500出口靜壓（帕）＞-920壓縮空氣(公斤/厘米2)壓力4～5空氣消耗(米3/小時)0.01總裝機功率(千瓦)8.84主傳動電機(千瓦)5.5道夫傳動電機(千瓦)2.2清潔輥電機(千瓦)0.37蓋板花清潔輥電機(千瓦)0.37給棉電機(千瓦)0.4安全罩形式全封閉式占地面積（長×寬）(毫米)3955x2048（不含圈條器）機器凈重（公斤）7500
